Eliminating Industrial Bottlenecks Through Precision Equipment Simulation
Leveraging advanced digital twin technology to validate equipment selection and machine placement before the first bolt is turned.
Turning Operational Uncertainty into Data-Driven Certainty

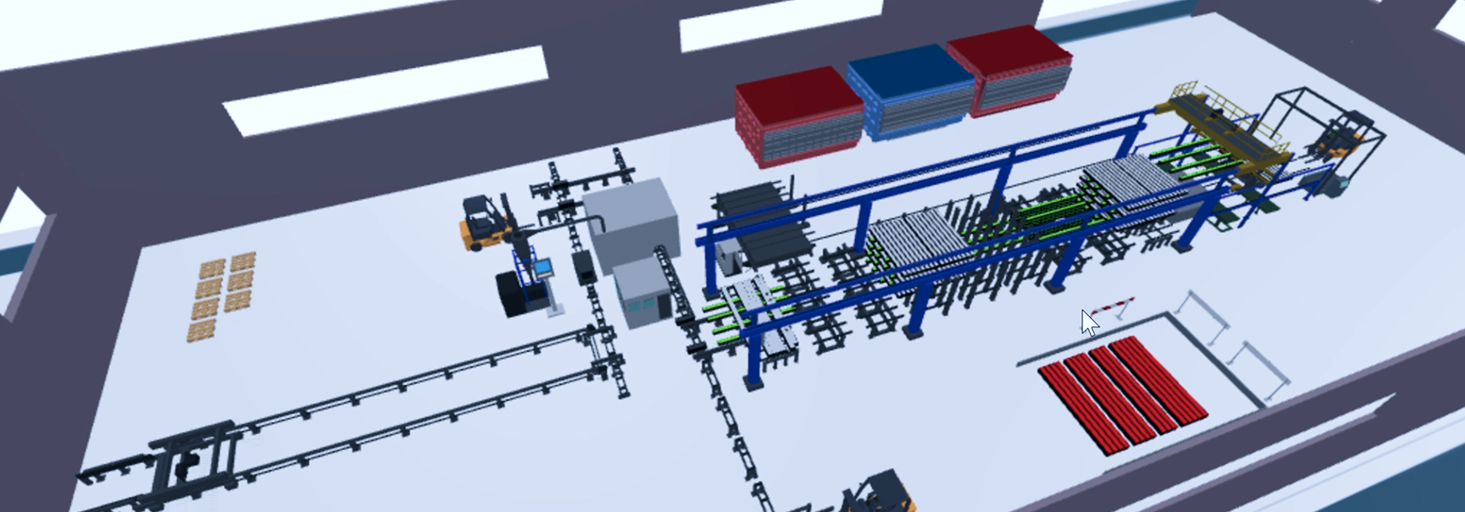

In the high-stakes environment of energy-intensive manufacturing, a single misplaced machine or an undersized crane can lead to millions in lost throughput. For this project, EMAA Blue Industries deployed EBI SIM to replace “gut-feeling” layout planning with rigorous, simulation-driven validation. By creating a digital environment to test equipment capacity and material-handling behavior, we provided the client with a risk-free roadmap for their factory floor.
The focus extended beyond simple placement; we conducted deep-dive sub-studies into billet stacking patterns and crane cycle times. This ensured that the human operators—our primary focus—are supported by a system designed for flow, safety, and maximum efficiency.
Images & Video
Challenges · Solution · Results
- Integration Friction: Difficulty in choosing equipment that aligns with existing production targets and physical constraints.
- Invisible Bottlenecks: Improperly sized material-handling systems (like cranes) creating "hidden" delays that accumulate over shifts.
- Costly Trial-and-Error: Traditional layout decisions made without simulation often lead to expensive post-installation adjustments.
- Scenario Modeling: Utilizing AnyLogic to evaluate multiple equipment configurations against rigorous annual production targets.
- Capacity Stress-Testing: Running detailed simulations on crane operations, including bridge and trolley speed variables, to find the "sweet spot" for performance.

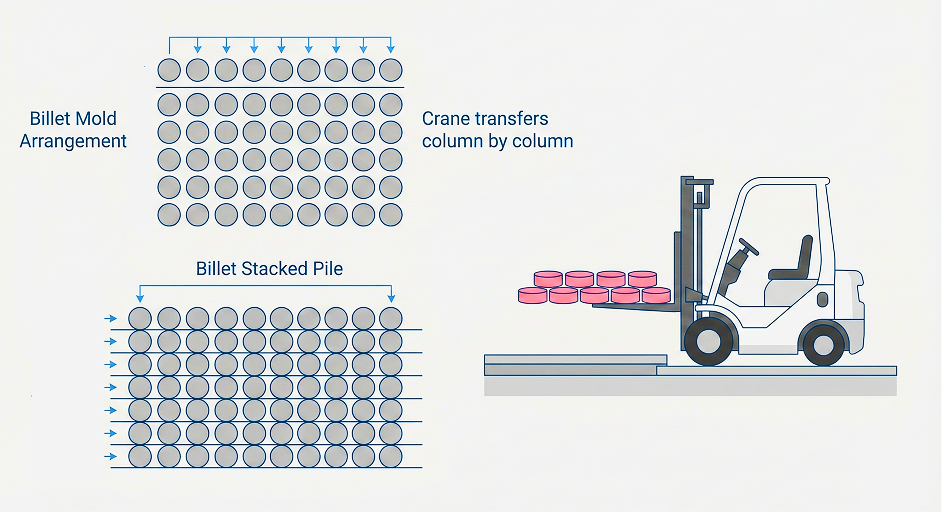

- Stacking Optimization: Comparative analysis of billet stacking patterns to maximize floor space without sacrificing retrieval speed.
- Validated Procurement: Data-backed confidence in selecting equipment that meets production needs with zero risk of bottlenecks.
- Optimized Workflow: Improved continuity through precise crane capacity planning and refined material-handling logic.
- Future-Proof Planning: A clear, scalable guidance document for long-term machine placement and resource allocation.
In-Depth Documentation
Strategic Background & Objectives
The primary goal was to move the client toward an Industry 4.0 standard by integrating intelligent systems that prioritize human-machine synergy. In energy-intensive sectors like steel and metallurgy, operational delays are not just inefficient—they are environmentally and financially costly. EBI SIM was tasked with identifying the exact equipment specifications required to maintain a continuous, “lean” flow of materials while upskilling the workforce to interact with these new digital twin interfaces.
Implementation & Methodology

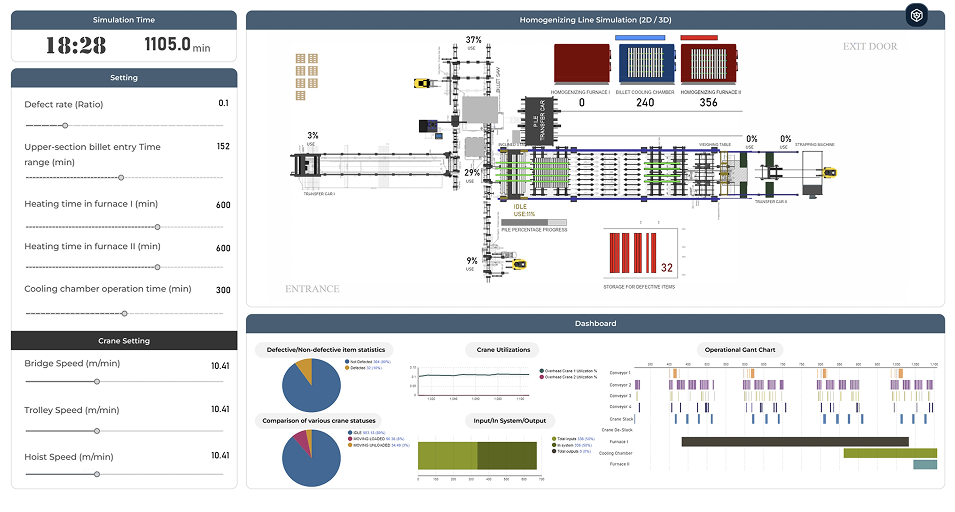

The project followed the EBI Platform’s agile implementation strategy. We began by digitizing the factory’s physical constraints and production goals. Using a “Training-First” approach, we ensured that the simulation outputs were accessible to both engineers and floor managers. By analyzing “Gantt-style” operational crane draws and “Billet Stacker Availability,” we were able to visualize potential friction points in real-time. This allowed us to iterate on stacking patterns—moving from column-by-column transfers to dense pile stacking—to find the most efficient material handling logic.
Tools & Technologies
